Brain Implant Smaller Than A Grain Of Sand Records Neural Activity For A Full Year

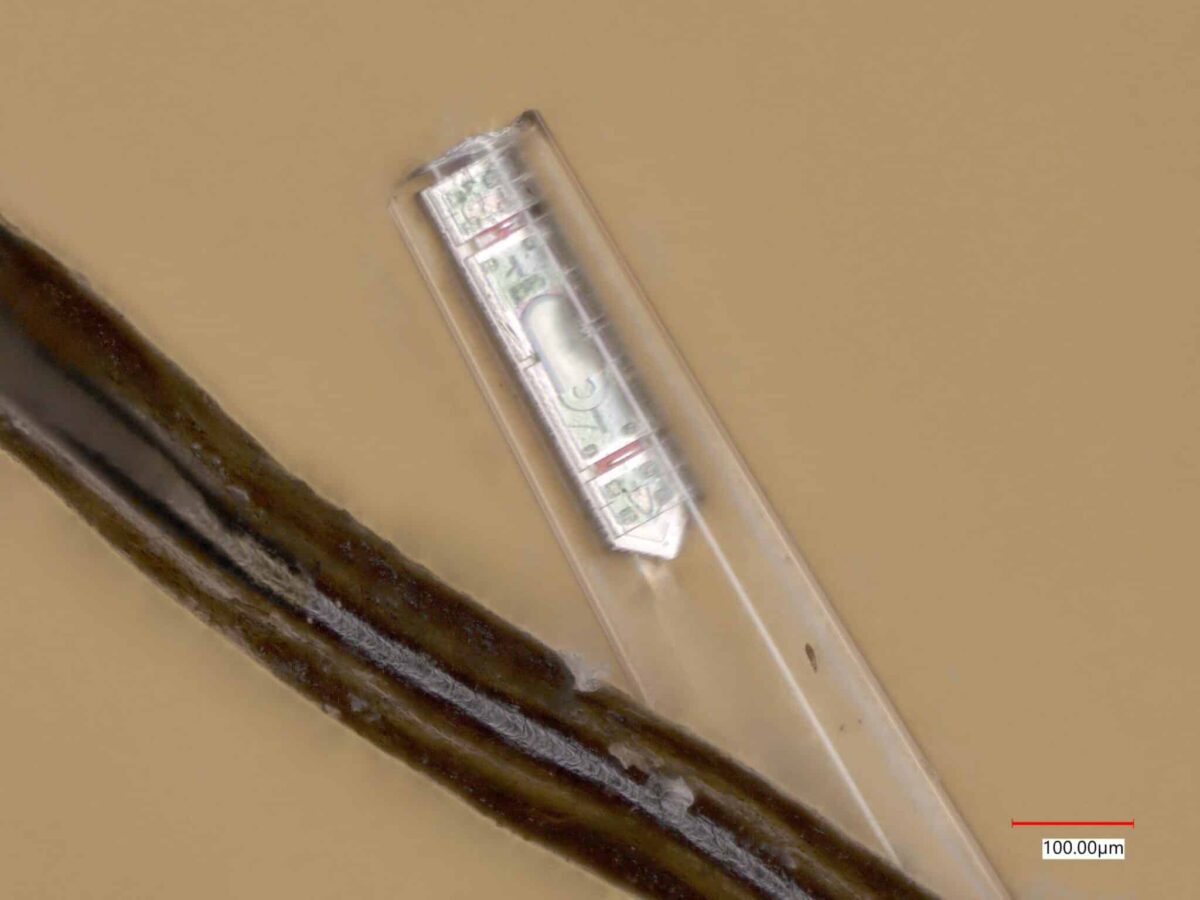

Scientists just built a brain implant barely visible to the naked eye. At 370 micrometers long and 70 micrometers wide, it’s about as wide as three or four human hairs. These innovative, tiny devices recorded the brain activity of a group of mice for an entire year.

The implant is so small that dozens could fit on a pinhead. Yet it stayed functional for 365 days, capturing everything from individual brain cells firing to coordinated activity across neural networks. Compare that to existing wireless brain implants, which can be hundreds of times larger.

“The long-term recording of neural activity could be used to understand complex behaviors and disorders,” the researchers wrote in Nature Electronics. The international team, led by Sunwoo Lee from Nanyang Technological University and colleagues from Cornell University, showed these microscopic devices could track brain signals without the tissue damage that plagues larger implants.

So how does something this small actually work?

Light Does All the Heavy Lifting

Instead of wires or radio waves, these implants use light for everything. An external red LED beam powers the device continuously. The implant sends data back using brief infrared pulses. Think of it like a conversation conducted entirely with flashlights.

This matters because traditional wired implants damage brain tissue as they shift around. Your brain actually moves slightly inside your skull during normal activity. When wires are tethered to external hardware, that movement creates friction and scarring. Wireless systems avoid this problem, but they’re typically too bulky.

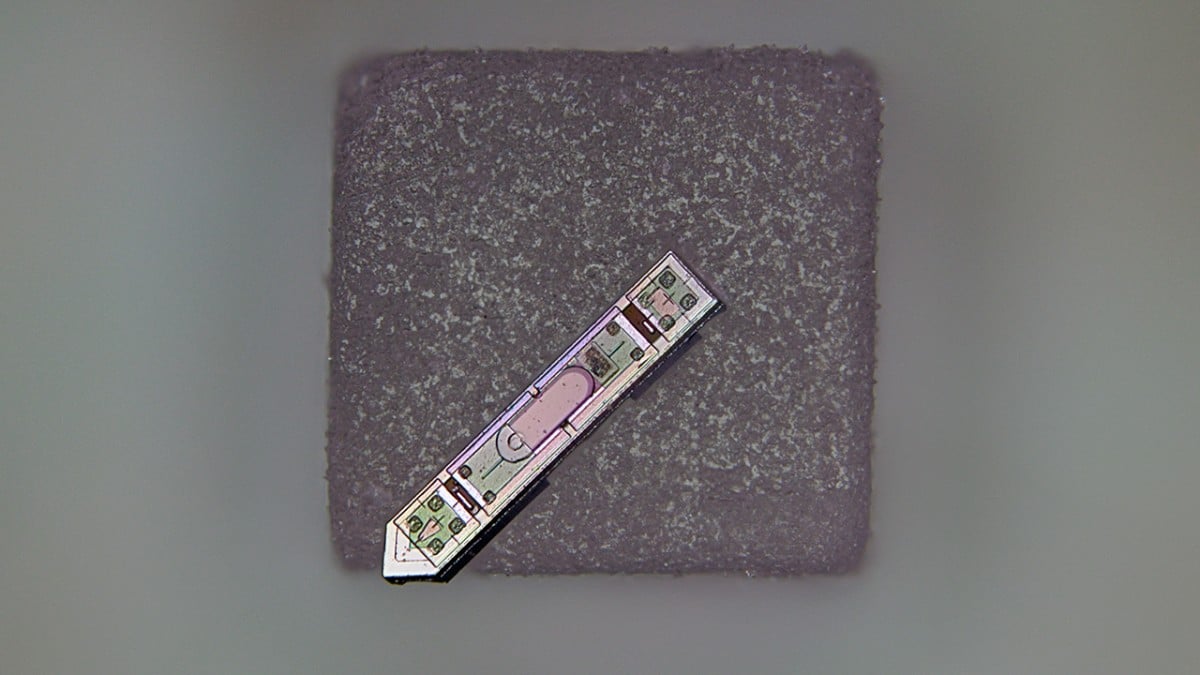

The device uses a single component that pulls double duty. It harvests power from incoming light 93.4% of the time and transmits data for the remaining fraction. Inside this grain-of-sand-sized package, hundreds of tiny transistors amplify signals from nearby neurons, encode the information, and drive the light output. The whole system runs on 1 microwatt—about one-millionth the power of a typical LED bulb.

Building Something Smaller Than a Dust Mite

Getting electronics this small to work inside a living brain required some serious engineering gymnastics.

First, the team had to bond different materials together—silicon chips and light-sensitive semiconductors—without the usual residues that gum up the works. They used an ultra-low-pressure heating process at 300°C to clean and strengthen the connections.

Then came waterproofing. The body is essentially a corrosive salt bath, so the researchers built up ultra-thin protective layers totaling less than 1.5 micrometers thick. That’s about one-fifth the width of a red blood cell.

There was, however, a problem. Light leaking into the silicon electronics could generate unwanted electrical signals and scramble the brain readings. The solution? Wrap everything in a form-fitting platinum coating that simultaneously blocks light, records neural activity, and reinforces the structure.

From Beating Heart Cells to Mouse Brains

Before trying these devices in living brains, researchers tested them on lab-grown heart cells. The implants tracked the cells beating in sync, then recorded the changes when researchers applied drugs that sped up or slowed down the heartbeat. From 1.8 beats per second up to 2.0, then down to 0.8. The devices worked perfectly.

For the brain experiments, the team implanted eight devices in six mice, placing them in a region that processes whisker sensation. Using a tiny glass pipette, they inserted the implants 100 to 400 micrometers deep—about the thickness of a few sheets of paper stacked together.

Here’s where the size becomes an advantage. Researchers could load these devices into pipettes while suspended in rubbing alcohol, which sterilizes them and evaporates quickly without causing damage. Once in place, only light needed to pass through the skull window to power them and receive their signals back.

When researchers touched the mice’s whiskers with a motorized rod, the implants detected the resulting brain activity and transmitted it optically. A photodiode captured those infrared pulses, and software reconstructed what the neurons were doing.

A Full Year of Brain Recording

Four of the implanted devices captured coordinated activity from groups of neurons. Two others, placed on the brain surface, recorded broader electrical patterns. One ended up too deep to work reliably, and another got damaged during preparation.

The recordings showed clear responses to whisker stimulation that stayed detectable well past 100 days. Individual neurons firing appeared as sharp electrical spikes. Groups of neurons working together showed slower, wave-like patterns.

The signal strength varied somewhat over time, probably because the devices shifted 50 to 300 micrometers as post-surgical swelling went down during the first few weeks. This moved them slightly closer to or farther from active neurons. But the overall patterns remained stable.

On day 365—a full year later—one implant still responded to whisker touches. The signals had gotten weaker, requiring the researchers to average 30 to 40 recordings to see them clearly above background noise. But it was still working. When they removed the devices and tested them, both still lit up when exposed to light, meaning the circuits were fine. The recording electrodes had simply degraded slightly over time.

Why Brain Tissue Barely Noticed They Were There

When the researchers examined brain tissue under a microscope after six months, they found very little damage around the implant sites.

Neurons beneath the six-month-old implants looked healthy and normal, with their characteristic branching structures intact. Immune cells (which indicate inflammation) near the implants were at similar levels to control areas under the same skull window where no device had been inserted. The window itself seemed to trigger more immune response than the implants.

The real surprise came when they compared these six-month results to optical fibers implanted in other mice for just three months. Despite being in place for half as long, the fibers caused substantially more inflammation. Neurons beneath them showed signs of degeneration that were completely absent around the microscopic implants.

Why the difference? Volume. These implants displace less than a nanoliter of brain tissue. Even thin optical fibers occupy thousands of times more space. Less volume means less mechanical stress and less foreign surface area triggering immune reactions.

Solving Problems That Have Plagued Brain Implants for Years

This technology addresses issues that have limited brain recording for decades.

Wired implants cause ongoing damage because brains shift slightly inside skulls during normal activity. The wires create shearing forces that damage tissue and cause scarring.

Wireless systems avoid that problem but face a different constraint: they’re typically huge. Radio-frequency and ultrasound-based approaches need components scaled to their wavelengths. Some wireless systems approach 1% of total mouse brain volume per recording channel. For comparison, a mouse brain is about 400 cubic millimeters total.

These optical implants are orders of magnitude smaller. Researchers could theoretically implant thousands before reaching the volume of existing single-channel systems. That scalability could enable mapping neural circuits across entire brain regions—something impossible with current technology.

The optical approach also works deep in tissue. Red and near-infrared light penetrate biological tissue easily, and the light intensity stays well below levels that cause heat damage. Simulations suggest these devices could theoretically work at depths up to 6 millimeters in mouse brains—enough to reach most regions.

There are limitations, of course. The bandwidth captures signals up to about 10 kilohertz, which covers most brain activity but might miss some high-frequency events. Each device has two recording electrodes spaced 300 micrometers apart, so they can’t isolate signals from individual neurons as precisely as dense electrode arrays. And for now, mice need to remain head-fixed during measurements while connected to external optical hardware.

Beyond Brain Recording

The technology could work in places where existing tools can’t.

Brain organoids—tiny three-dimensional brain tissue cultures grown in labs—are too small and delicate for conventional electrodes. These microscopic implants could fit inside and measure electrical activity directly.

Fruit flies and roundworms are crucial research models, but their nervous systems are too tiny for traditional recording methods. These implants could enable direct electrical measurements without genetic modifications.

Related micro-devices from the same research group can sense chemical changes, suggesting a path toward monitoring metabolism in engineered tissues or detecting biomarkers in organ-on-chip systems.

Multiple implants could work together to map activity across distributed networks. Since they need no batteries and minimal external infrastructure, scaling to dozens or hundreds might be feasible.

This work received support from the National Institutes of Health, Nanyang Technological University, Singapore’s National Research Foundation, and Singapore’s Ministry of Education.

---
