New Test Detects Gut Bleeding In 20 Minutes Using Bacteria In Magnetic Capsules

The capsules light up upon encountering blood in the gut. A brighter glow indicates more bleeding.

Scientists have created a new way to detect intestinal bleeding that takes just 20 minutes. That’s a major improvement over the usual 10 hour or more time frame. The trick? Bacteria packed inside tiny magnetic gel capsules that glow when they find blood.

Researchers at East China University of Science and Technology in China built this system, called MagGel-BS. It combines three things: a gel shell that protects the bacteria, magnetic particles that make the capsules easy to collect, and specially programmed bacteria that act as disease detectors. The team shared their results in the journal ACS Sensors.

Current methods for testing bacterial sensors are complicated. Scientists have to grind up stool samples, spin them in a centrifuge, wash them repeatedly, and filter everything through tiny screens. This process usually takes hours, sometimes more than 10 hours from start to finish.

The new method is simpler. Researchers grind the sample, use a magnet to grab the capsules, rinse them in clean saltwater, and measure how much they’re glowing. Total time: 25 minutes. The bacteria give results in as little as 20 minutes after collecting the sample.

Bacteria That Light Up When They Find Blood

The bacterial sensors are modified versions of E. coli Nissle 1917, a helpful bacteria strain. Scientists engineered them to detect heme, a part of blood that shows up when there’s bleeding in the gut. The researchers used a strain called YES601 that they had built earlier.

When heme gets inside the bacterial cells, it flips a genetic switch that makes the bacteria produce light. More heme means brighter light, so researchers can tell how bad the bleeding is by measuring the glow.

The gel shell does more than just hold bacteria. Its sponge-like structure lets nutrients and disease markers pass through while protecting the bacteria from stomach acid and digestive enzymes. After 30 minutes in fake stomach acid, bacteria inside the gel stayed 100% alive. Bacteria without protection? Only 25% survived. After one hour, the protected bacteria did more than 10 times better.

The gel also blocks the bacteria from touching the immune system directly, which prevents inflammation. When researchers mixed the gel capsules with mouse immune cells, nothing happened. But naked bacteria triggered a big immune response.

Testing in Mice with Inflammatory Bowel Disease

To see if this actually works for detecting disease, the researchers used mice with a condition similar to inflammatory bowel disease. They gave the mice a chemical called DSS that causes gut inflammation and bleeding, much like human colitis.

The researchers divided the mice into four groups: healthy, mild disease, moderate disease, and severe disease. They classified the mice based on weight loss, stool consistency, and blood in their stool. After giving the mice the magnetic gel capsules, they collected stool samples 2-4 hours later.

The light intensity from recovered capsules matched disease severity. Healthy mice produced weak signals. Severely sick mice produced the strongest glow. When researchers examined the intestinal tissue under a microscope, the glow levels matched the actual damage they saw.

The bacteria stayed put inside their capsules. Over 10 hours, less than 1% escaped. The capsules also held together when exposed to fake intestinal fluid with bile salts and digestive enzymes. Bacterial leakage stayed below 0.15% over four hours.

Magnetic Recovery Speeds Up Detection

The magnetic particles inside the capsules solve a big practical problem. Without magnets, separating these bacterial sensors from stool samples would be incredibly difficult. Stool contains food particles, body cells, and billions of other bacteria.

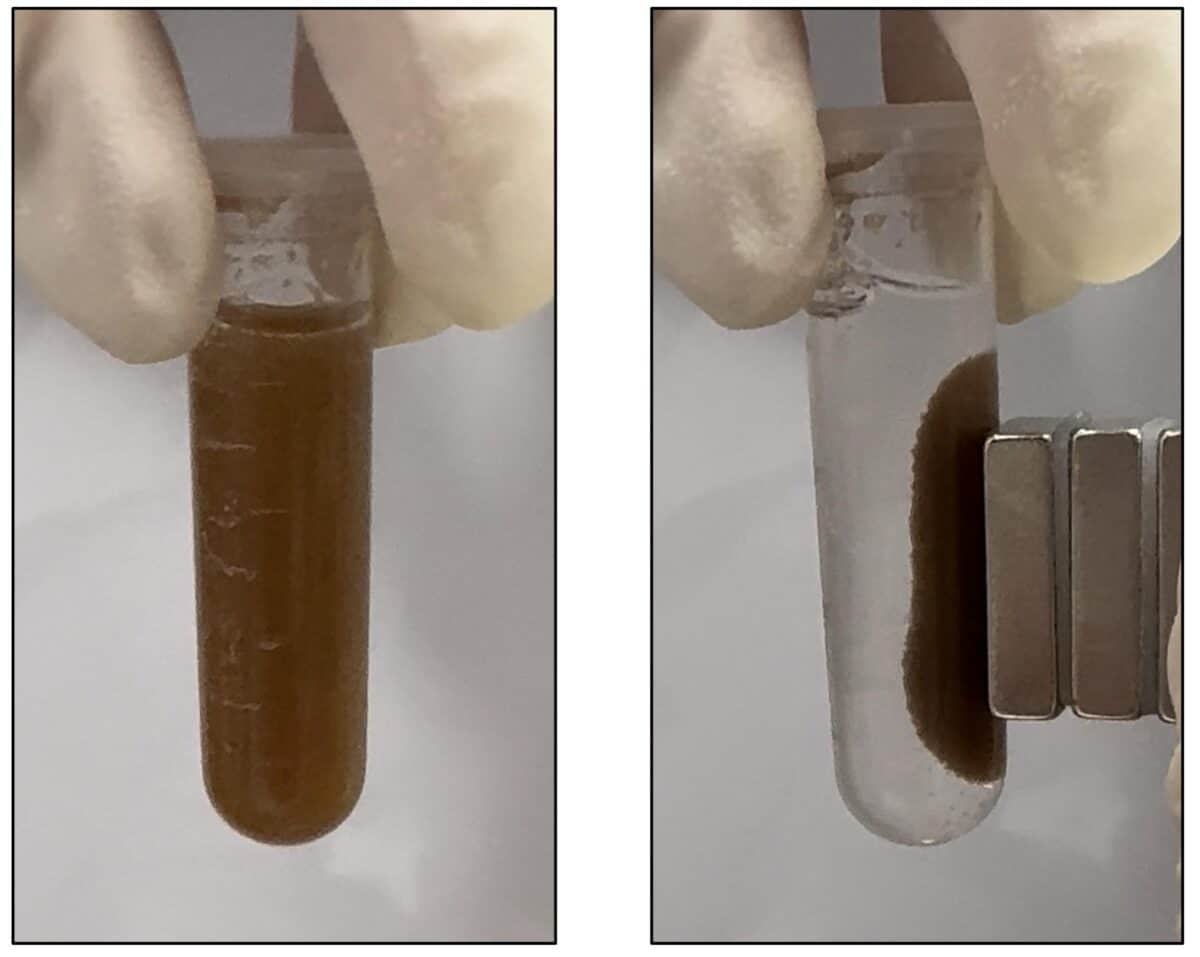

The magnetic recovery is straightforward. A magnet with a protective cover dips into the ground-up stool sample and attracts the gel capsules. The capsules move to clean saltwater for rinsing. After removing the magnet, the capsules fall off and can be tested. Researchers recovered about 20-30% of capsules at each time window (2-4 hours, 4-6 hours, and 6-8 hours after giving them to mice), for a total recovery of nearly 75% within 8 hours.

Bacterial counts in recovered capsules from the first time window were about 75% of what they started with. Capsules collected later had even more bacteria, over 85% of the starting amount. The researchers think the bacteria might be growing inside the protective gel.

Capsule size matters. Researchers made spheres between 190 and 250 micrometers across (about twice the width of a human hair), averaging 223 micrometers. This size can pass through the mouse digestive system while being large enough to hold both bacteria and magnetic particles. Each tiny sphere held about 2,976 bacterial cells.

No Short-Term Safety Issues Seen in Mouse Tests

Before this technology could move toward human testing, the research team ran extensive safety checks. When they mixed gel-encapsulated bacteria with mouse immune cells in lab dishes, the capsules didn’t trigger inflammation. Naked bacteria did cause inflammation.

In living mice, giving the bacterial gel capsules by mouth caused no changes in inflammatory markers, liver enzymes, or body weight over five days. Examining intestinal tissue showed no damage. Testing the gut microbiome showed that the bacterial gel capsules didn’t change the mix of native gut bacteria.

After freeze-drying and storing at -80°C for one month, the bacterial sensors kept more than 80% of their activity.

Researchers compared their system to the ortho-tolidine method, a chemical test for detecting hidden blood in stool. While that test works in minutes, it often gives false positives when samples have vitamin C, certain enzymes, or myoglobin from muscle damage. The biosensor responds to heme with higher specificity than chemical tests, which can be thrown off by vitamins or other molecules, and can catch early stages of intestinal bleeding better.

Traditional endoscopy for detecting gut bleeding is invasive and uncomfortable. The bacterial biosensor platform could offer a less invasive option, though much more development is needed before human testing.

The speed difference really stands out against other bacterial biosensor approaches. Previous methods needed 5-micrometer filters and lots of washing and spinning. The magnetic recovery cuts processing time to 25 minutes.

Could Detect Other Diseases Too

While this study focused on heme as a bleeding marker, the MagGel-BS platform could work with different bacterial sensors for other disease markers. Earlier work has created bacterial sensors that respond to thiosulfate and tetrathionate (signs of gut inflammation), calprotectin (another inflammation marker), and specific DNA sequences from colorectal cancer cells.

The modular design means different sensing bacteria could go into the same magnetic gel technology, potentially detecting multiple disease markers using similar methods.

Researchers know there are hurdles before this reaches clinics. The system needs work to prevent bacterial leakage during intestinal transit, possibly through better gel formulations or shell structures. False activation from similar molecules in the gut is a concern, as is how the host microbiome affects the engineered bacteria.

Manufacturing at scale would require streamlined processes that meet strict quality standards, plus ways to keep the sensors stable across batches. Cost and long-term shelf stability need attention.

Still, cutting processing time this dramatically is a big step forward for bacterial biosensor technology. By using magnetic particles to solve the recovery problem and protecting bacteria with gel, researchers have built a platform that brings rapid, specific disease detection closer to real-world use.

---
